Products

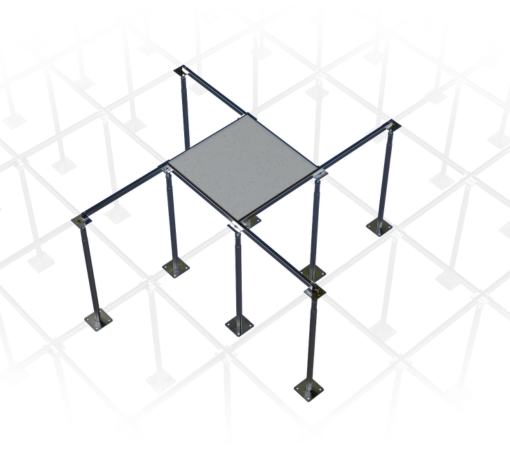

Understructure | Raised Access Flooring

Asm Understructure Product Render Image 1 En Us

Filter:

Asm Understructure B4201d Product Render Image 1 En Us

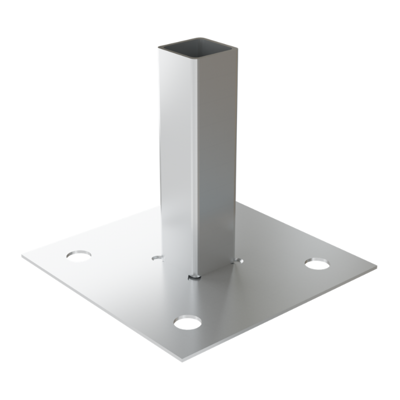

B4201D Base

7/8" sq. x 16 Ga. steel tube resistance welded to a 4" x 4" x 1/8" thick steel base plate.

Find out more
Asm Understructure B4301d Product Render Image 1 En Us

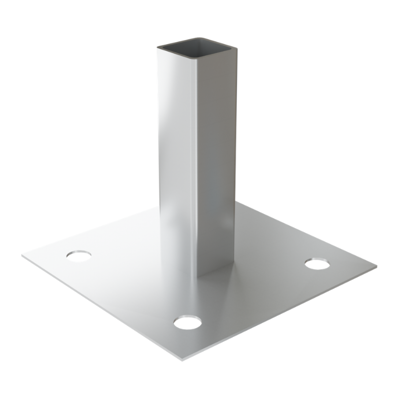

B4301D Base

7/8" sq. x 16 Ga. steel tube fillet welded to a 4" x 4" x 0.197" thick steel base plate.

Find out more
Asm Understructure B44m01d Product Render Image 1 En Us

B44m01D Base

7/8" sq. x 16 Ga. steel tube resistance welded to a 4" x 4" x 0.157"" thick steel base plate.

Find out more
Asm Understructure B5210d Product Render Image 1 En Us

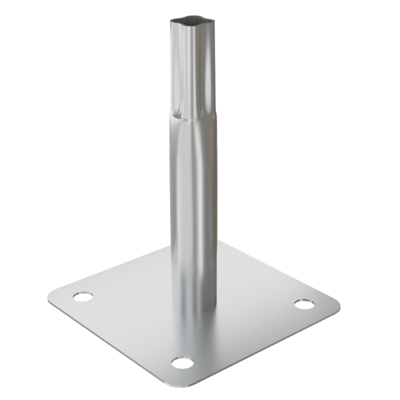

B5210D Base

1" dia. x 16 Ga. steel tube fillet welded to a 5" x 5" x 0.12" thick steel base plate.

Find out more
Asm Understructure B5311d Product Render Image 1 En Us

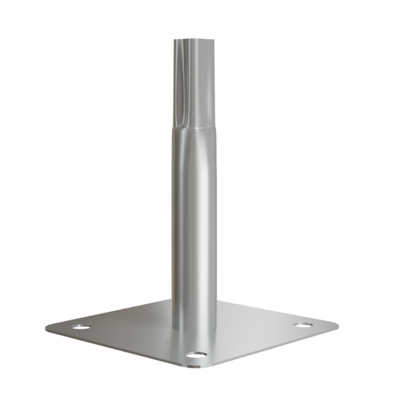

B5311D Base

1-1/8" sq. x 16 Ga. steel tube fillet welded to a 5" x 5" x 0.197" thick steel base plate.

Find out more
Asm Understructure B5312d Product Render Image 1 En Us

B5312D Base

1-1/4" sq. x 16 Ga. steel tube fillet welded to a 5" x 5" x 0.197" thick steel base plate.

Find out more
1 2 3
