Asm Understructure B5315d Product Render Image 1 En Us

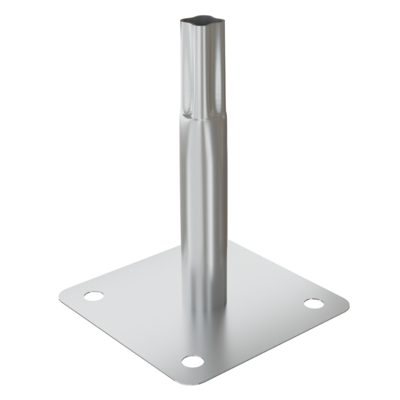

B5315D Base

1-1/2" sq. x 16 Ga. steel tube fillet welded to a 5" x 5" x 0.197" thick steel base plate.

Find out more

Asm Understructure B5318d Product Render Image 1 En Us

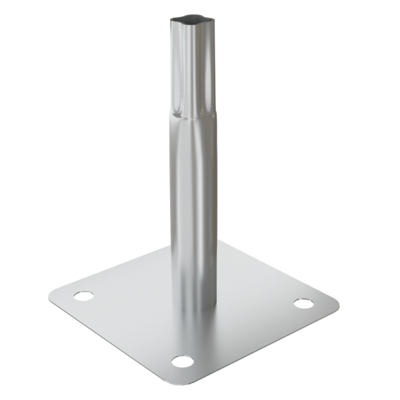

B5318D Base

1-3/4" dia. x 16 Ga. steel tube fillet welded to a 5" x 5" x 0.197" thick steel base plate.

Find out more

Asm Understructure B6315d Product Render Image 1 En Us

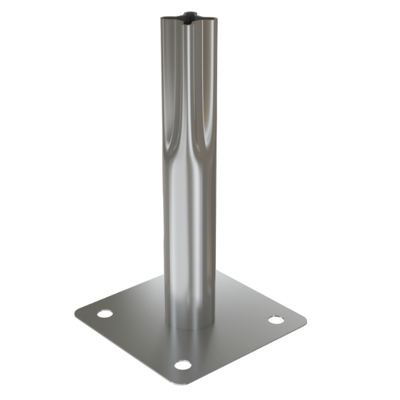

B6315D Base

1-1/2" dia. x 16 Ga. steel tube fillet welded to a 6" x 6" x 0.197" thick steel base plate.

Find out more

Asm Understructure B6318d Product Render Image 1 En Us

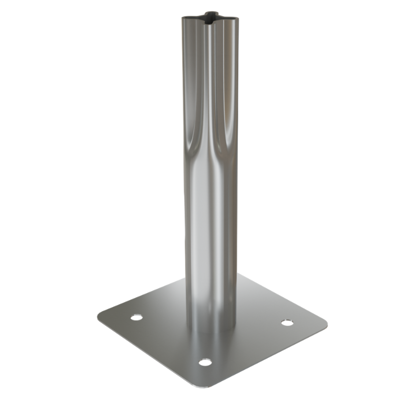

B6318D Base

1-3/4" dia. x 16 Ga. steel tube fillet welded to a 6" x 6" x 0.197" thick steel base plate.

Find out more

Asm Understructure B8825 Product Render Image 1 En Us

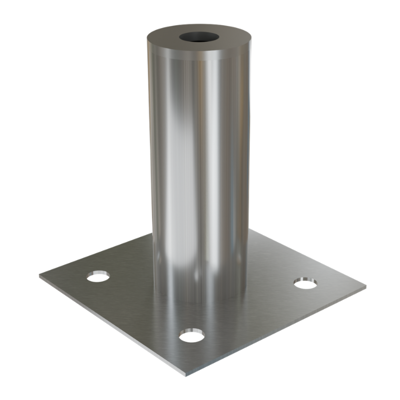

B8825 Base

2-1/2" Sched. 80 structrual steel pipe with 1" thick welded steel insert, fillet welded to a 8" x 8" x 0.50" thick steel base plate designed to accept a 1"-8 threaded rod.

Find out more

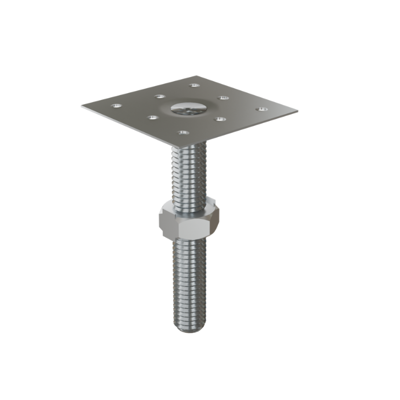

H100D Flat Head

3-1/4" sq. x 0.160" thick head plate fillet welded to a 3/4"-10 threaded rod with adjustment nut and anti-rotation tabs. Head plate provided with (8) 1/4"-20 tapped holes for stringer and corner-lock fastener attachment.

Find out more
